FOAM JACKING AND CONCRETE LEVELING EQUIPMENT
Slab Lifting Equipment and Pump Systems
MixMaster Pro Foam Jacking Gun
The MixMaster Pro two-component resin injection gun is manufactured specifically for lifting concrete slabs, and designed to handle back-pressure. As the essential piece of foam jacking equipment for Alchatek’s expanding polyurethane foams, the resin injection gun provides highly-efficient concrete leveling.
Key Features:
- Stainless steel gun block
- Completely mechanical actuation
- No side seals or O-rings in the mixing block to replace
- Integrated rebuildable check valves to save your whip hose
- Easy break down and clean up at the end of the day
- Utilizes smaller 3/8” injection port
- Uses water based flush
PX-7 Mechanical Purge Gun
The PX-7 incorporates a valving rod to mechanically purge the mixed material from the mixing module at the end of each shot; eliminates the need for solvent flushing or air purge. It comes standard with a precision machined coupling block made from high strength steel. Manufactured by Polyurethane Machinery Corporation.
Key Features:
- Economically Priced
- Mechanically Self Cleaning
- Solvent Free
- Airless Atomization
- Internal Impingement
- Machined Coupling Block
- Precision Ground, Single Piece
- Valving Rod
- Rebuildable Manual Valves
- Stainless Steel Hardened Gun Block
- CE Certified
PolyBadger Lifting System
The Alchatek PolyBadger lifting system is tough and compact. This system is an affordable entry-level option for new contractors, as well as an extremely portable addition to the experienced contractor’s arsenal. The PolyBadger is a lot less expensive than your standard 20 foot trailer rig. The set up is simple and requires minimal equipment. The entire system can easily fit in the back of a pickup truck!. The genius of the PolyBadger is the auto calibrator. It keeps the flow of A and B on ratio, eliminating the possibility of a crossover in the gun or the whip hose. The PolyBadger lifting system is offered exclusively by Alchatek for lifting and leveling concrete slabs.
Key Features:
- Tough and compact
- Lower initial investment
- Less equipment needed
- Easily fitted to truck, trailer or cart
- Different configurations available
- Available with generator/air compressor combo

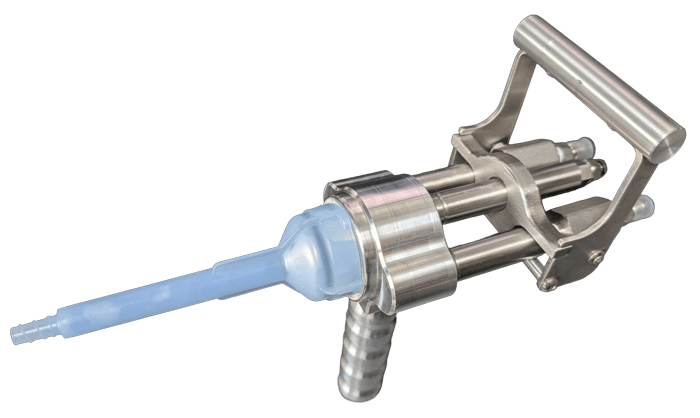

MiniMaster Low-Pressure Gun
The MiniMaster Low-Pressure Gun is a robust, metal-constructed injection tool engineered specifically for the Alchatek PolyBadger mobile slab lifting system.
Features:
- Metal construction
- Safety lock
- Compatible with standard static mixers
Benefits:
- Easy to clean and reuse
- Prevents accidental material discharge
- Ensures seamless integration with existing equipment
Slab Lifting Pumps
As the essential piece of concrete leveling equipment, PMC plural component hydraulic proportioners are used to inject AP two-component structural polyurethane foams for Slab Lifting, Filling Voids and Soil Stabilization. Rugged and dependable, this concrete level equipment utilizes relays and circuit breakers instead of circuit boards, vastly increasing reliability and preventing maintenance problems.
PH-40 2000 psi
| Output: 40 lbs/min |
| PH-40 1207A16 |
| PH-40 1207A30 |
| PH-40 1209A30 |
| PH-40 1210A30 |
| Maximum Hose Length: 410 ft |
| Size 120 Pumps, 15kw Heaters, 5HP, 1 ph |
| Size 120 Pumps, 15kw Heaters, 5HP, 3 ph |
| Size 120 Pumps, 18kw Heaters, 5HP, 3 ph |
| Size 120 Pumps, 21kw Heaters, 5HP, 3 ph |
| 220 Volt |
| 130 Amps |
| 80 Amps |
| 93 Amps |
| 106 Amps |
Note: The PH-40 Series is also available in 380 Voltage. Call for specs.
Premier 2000 psi
| Output: 40 lbs/min |
| Premier |
| Maximum Hose Length: 410 ft |
| Size 120 Pumps, 18kw Heaters, 5HP, 3 ph |
| 3 x 230 Volt |
| 67 Amps |
Premier Mach 2 2000 psi (Two Guns on One Pump)
| Output: 40 lbs/min |
| Premier Mach 2 |
| Maximum Hose Length: 260 ft Each Output |
| Size 120 Pumps, 18kw Heaters, 5HP, 3 ph |
| 3 x 230 Volt |
| 77 Amps |
PH-2 2000 psi
| Output: 28 lbs/min |
| PH-2 2000 |
| Maximum Hose Length: 410 ft |
| 16:1 Ratio Horizontal Pumps, 10.5 kw Heaters, Single Phase |
Alchatek is a proud distributor of concrete leveling tools, including Polyurethane Machinery Corporation equipment. If you would like more information on PMC systems and accessories before purchasing, please call us at 404-618-0438 or visit their website at http://www.polymac-usa.com.
